Unit details
EXISS EXHIBITOR 716W BP Warranty – 3/8 transferable warranty
CONSTRUCTION FEATURES
6 PEN
Insulated ceiling
• 6’2″ inside height – 7’0″ outside width
• All aluminum construction w/ single piece aluminum roof
• Interlocking extruded aluminum non-skid plank flooring
• 2″ x 4″ I-beams on 13″ centers
• (2) 3,500 lb. rubber torsion axles w/ electric brakes
• Aluminum V-hitch w/ 2 5/16″ coupler
• Breakaway switch w/ battery and slip hook safety chains

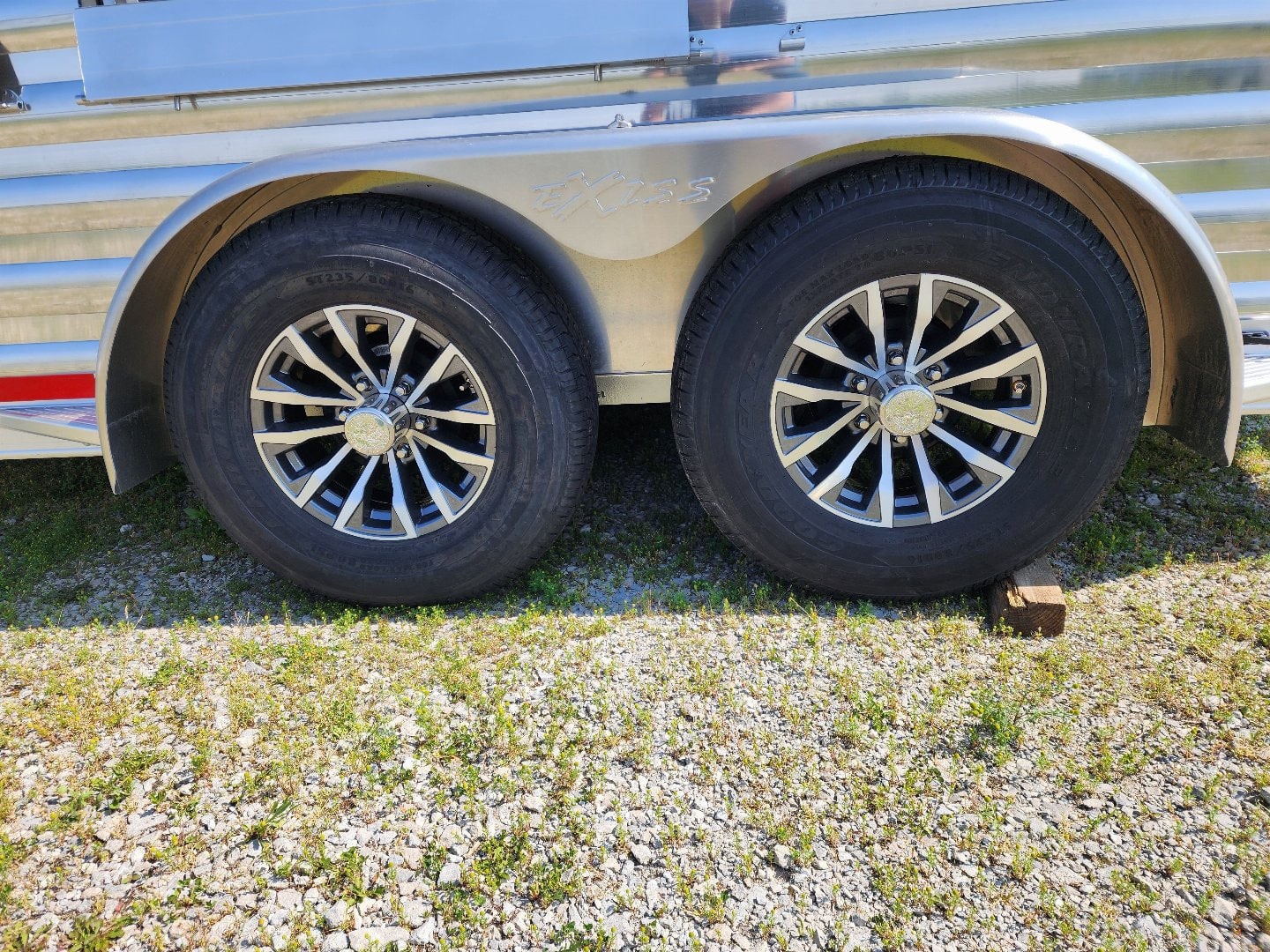

• Five 16″ 6 hole aluminum wheels w/ 10 ply Goodyear tires

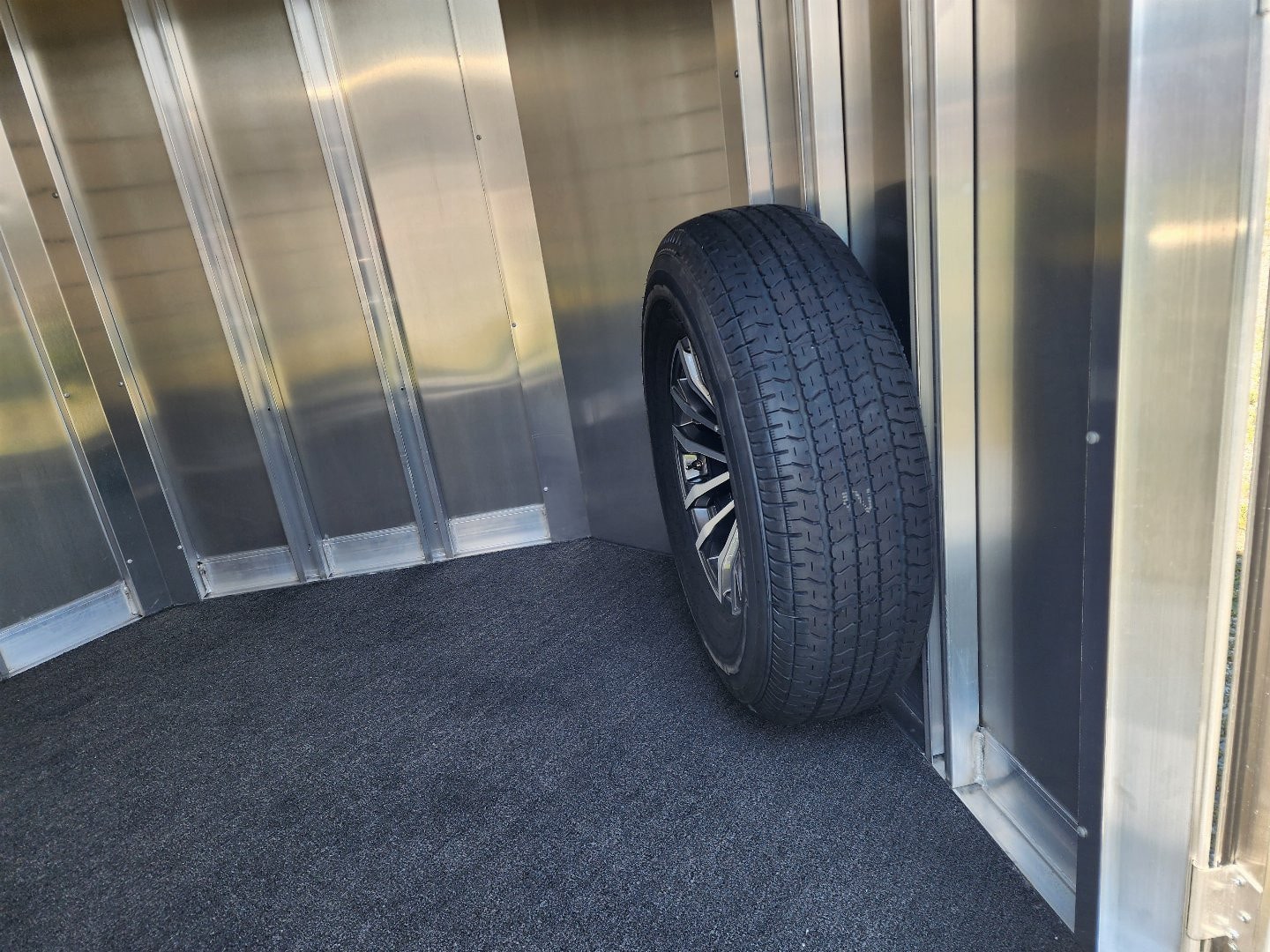

• Spare tire w/ interior mount
• 2,000 lbs. top wind jack w/ wheel
• Treadplate gravel guard 16″ high on nose
• Vertical stainless steel piece on nose
• .063 white aluminum sheets on nose, sides, rear doors
• Polished aluminum slat outside of livestock area
• Tear drop fenders
• Two bogey wheels under rear frame
• LED brake and running lights
• LED load lights above rear doors & side access door
• Solid wall separating tack area from livestock area
• 3/8 transferable warranty
STOCK AREA FEATURES
• One 18″ X 42″ drop down feed window per side per pen
• One lower air gap with hinged cover panel
• Six 4′ long pens w/ removable gates
• Convertible pen system (from alley-way to 50/50)
• Rear-hinged side access door (w/ 18″ X 24″ drop window)
• Security gate and internal lock at side access door

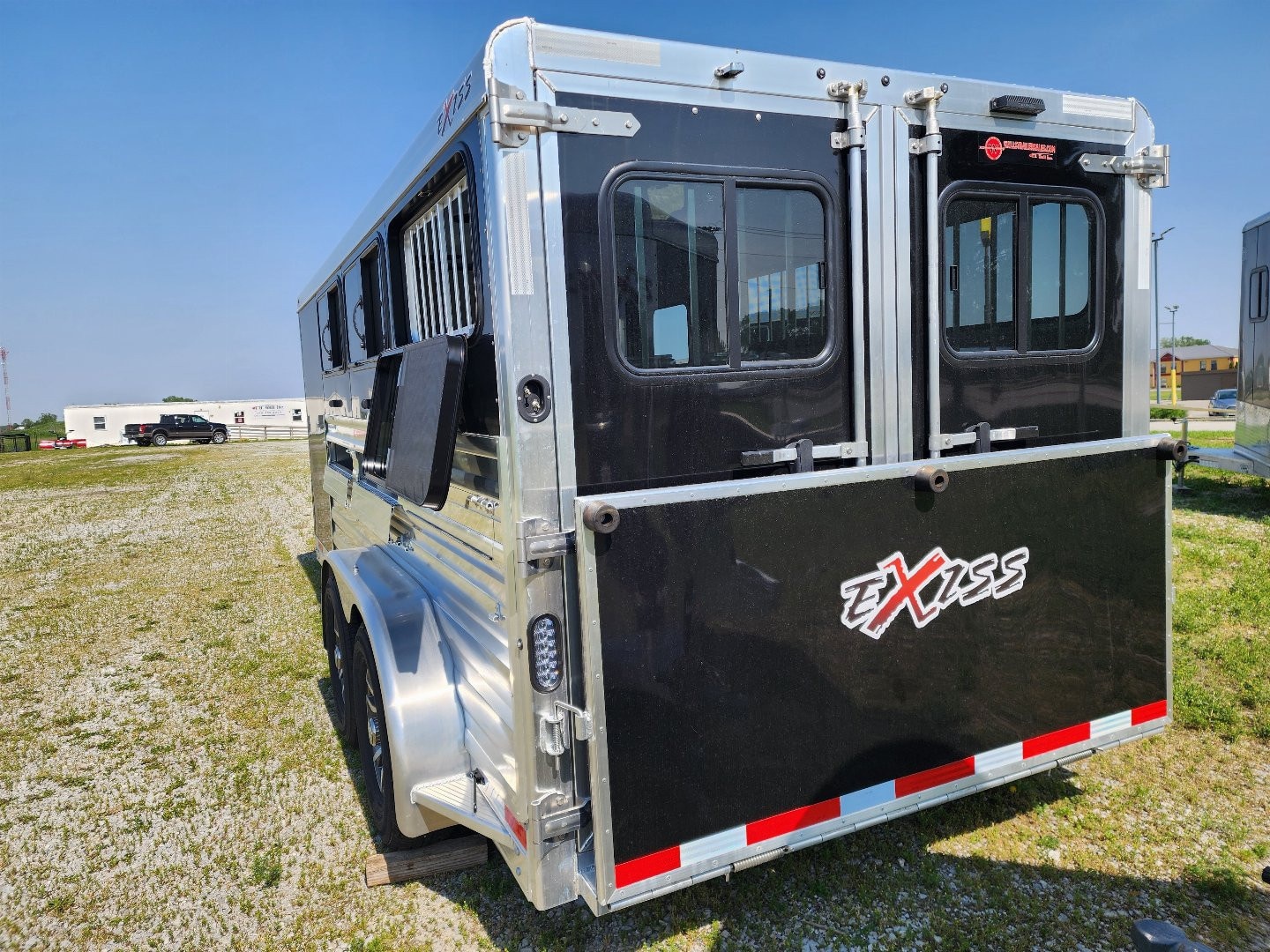

• 50/50 rear doors with one 19″ x 26″ window on each door
• Dual cam locks w/ lockable hasp on rear doors
• Full-length, curbside LED light strip
TACK AREA FEATURES

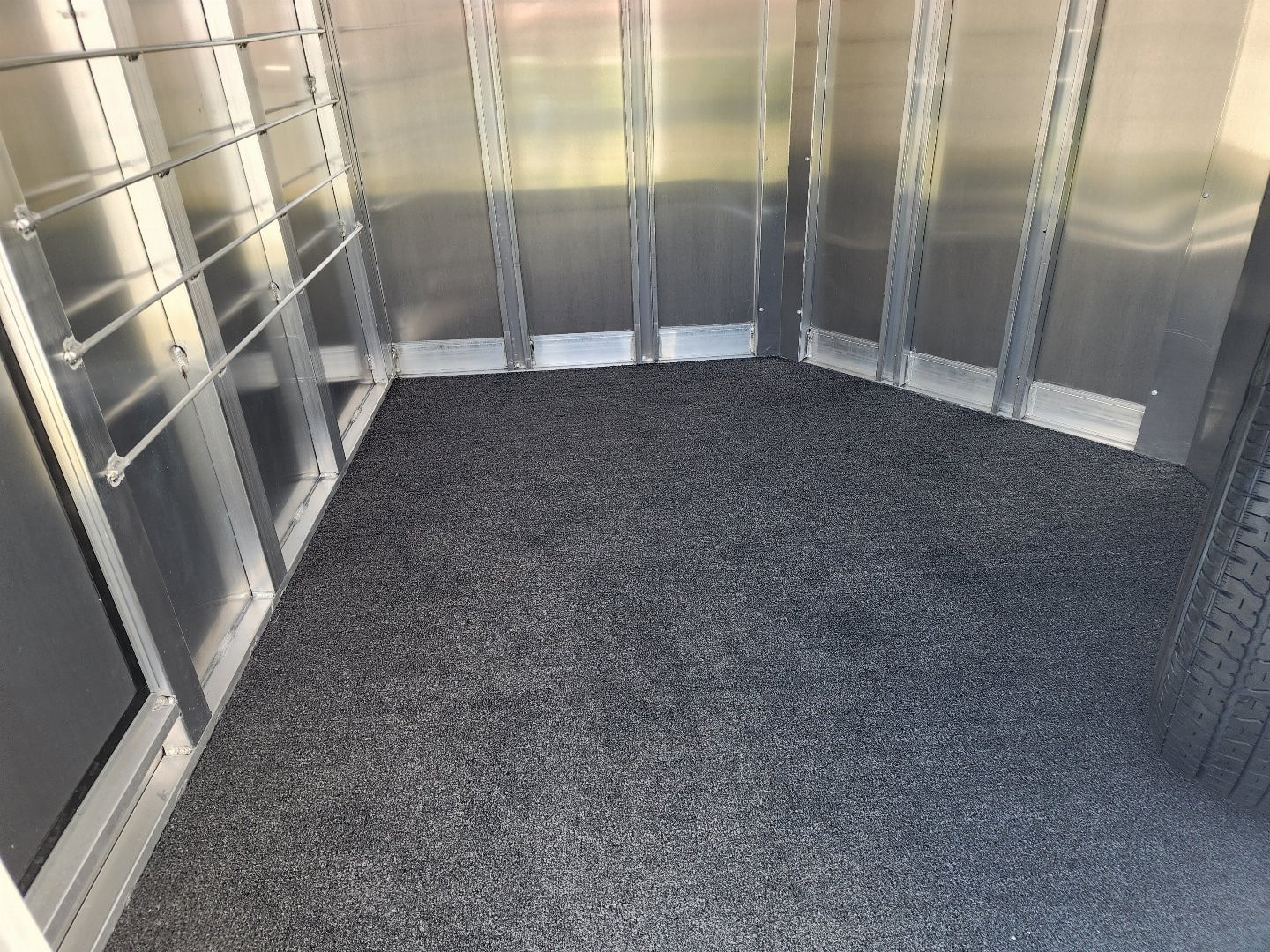

• 4′ straightwall tack room w/ carpeted floor
• Two interior LED lights in tack area
• Camper door w/ sliding window and dead bolt
• Walk-thru door from tack room to stock area
• Clothes rod CONSISTING OF THE FOLLOWING OPTIONS • Line and Insulate Ceiling with White Aluminum
IN STOCK AREA
• Light – Opti-Brite Interior LED Strip Light 16″ Long
IN DRESSING ROOM • Vent – Roof Vent – 5×9 Pop Up 2 Way Per Pen
• Rear Ramp – 7′ Full Width (3′ Tall)
•Trough Rack Rows/Whip Holder (Hangers)
•Tray – Removeable Accessory – 14″x36″
• Escape Door – 37″ Escape Door With Hinged Cover Panels
