Unit details

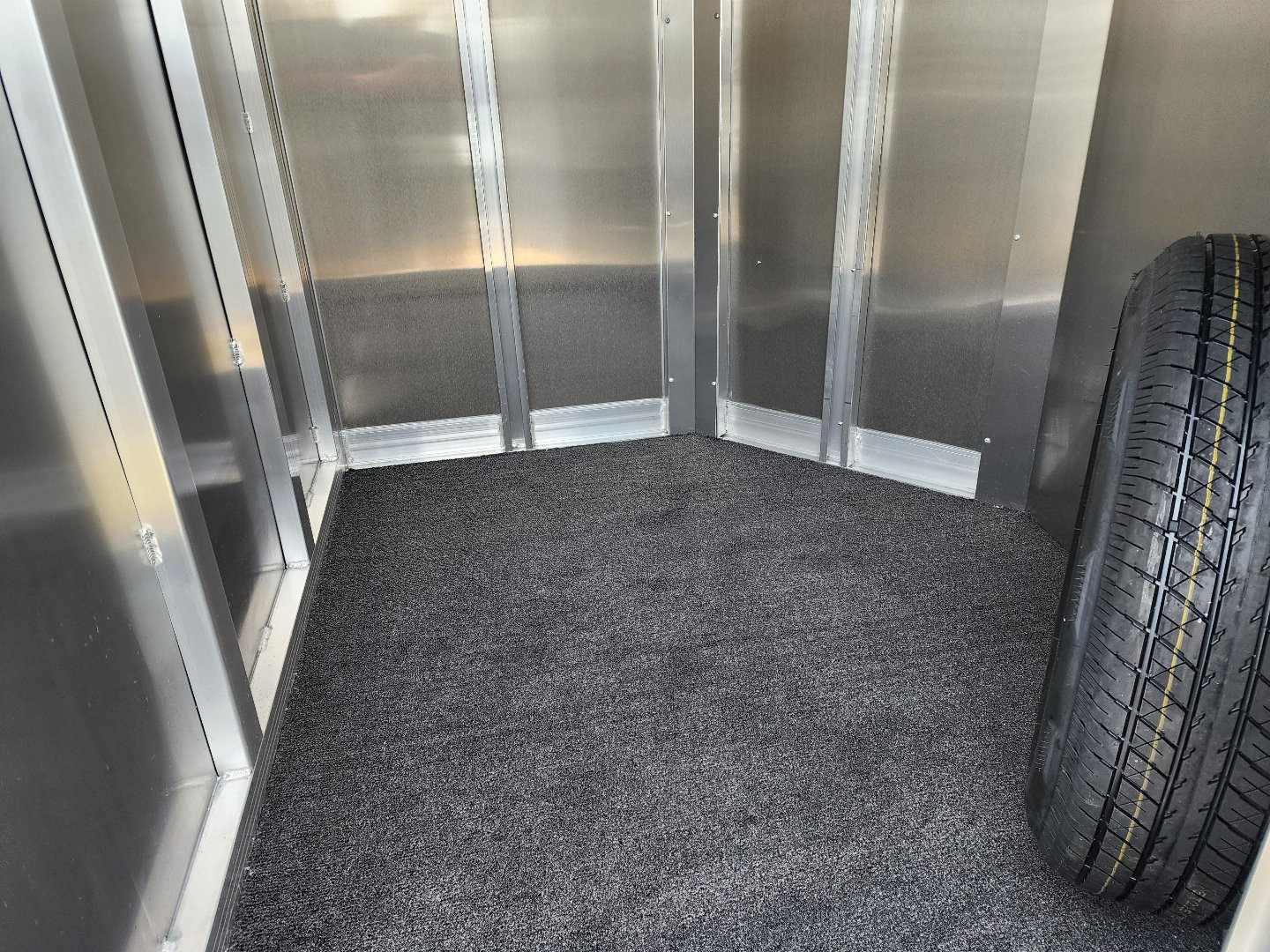

EXHIBITOR MINI COMBO 615W BP – 6’2″ TALL • CONSTRUCTION FEATURES 6’2″ inside height – 6’0 outside width • All aluminum construction w/ single piece aluminum roof • Interlocking extruded aluminum non-skid plank floor • 2″ x 4″ I-beams on 12″ centers • (2) 3,500 lb. rubber torsion axles w/ electric brakes • Five 15″ 6 hole steel wheels w/ 8 ply import tires • Aluminum V-hitch w/ 2 5/16″ coupler • Breakaway switch w/ battery and slip hook safety chains • 2,000 lbs. top wind jack w/ wheel • Treadplate gravel guard 16″ high on nose • .040 white aluminum sheets on nose, sides • Extruded aluminum slat outside of stock area • Spare tire w/ interior mount • 3/8 transferable warranty LIVESTOCK AREA FEATURES • One 18″ X 42″ drop down feed window per side per pen • One 2″ lower air gap w/ plexiglas • Heavy-duty 32″ curbside side access door (w/ window) • Full swing center gate w/ hold back and feeder bars • Full swing rear gate (w/ air gaps & plexiglas) • One LED light in stock area w/ switch on rear frame • Full width, rear rubber bumper TACK ROOM FEATURES • 3′ straightwall tack room w/ carpeted floor • One interior LED lights in tack area • Camper door w/ sliding window and dead bolt Optional Equipment: Rear Doors – 50/50 Stock Type Full Swing Rear Gate

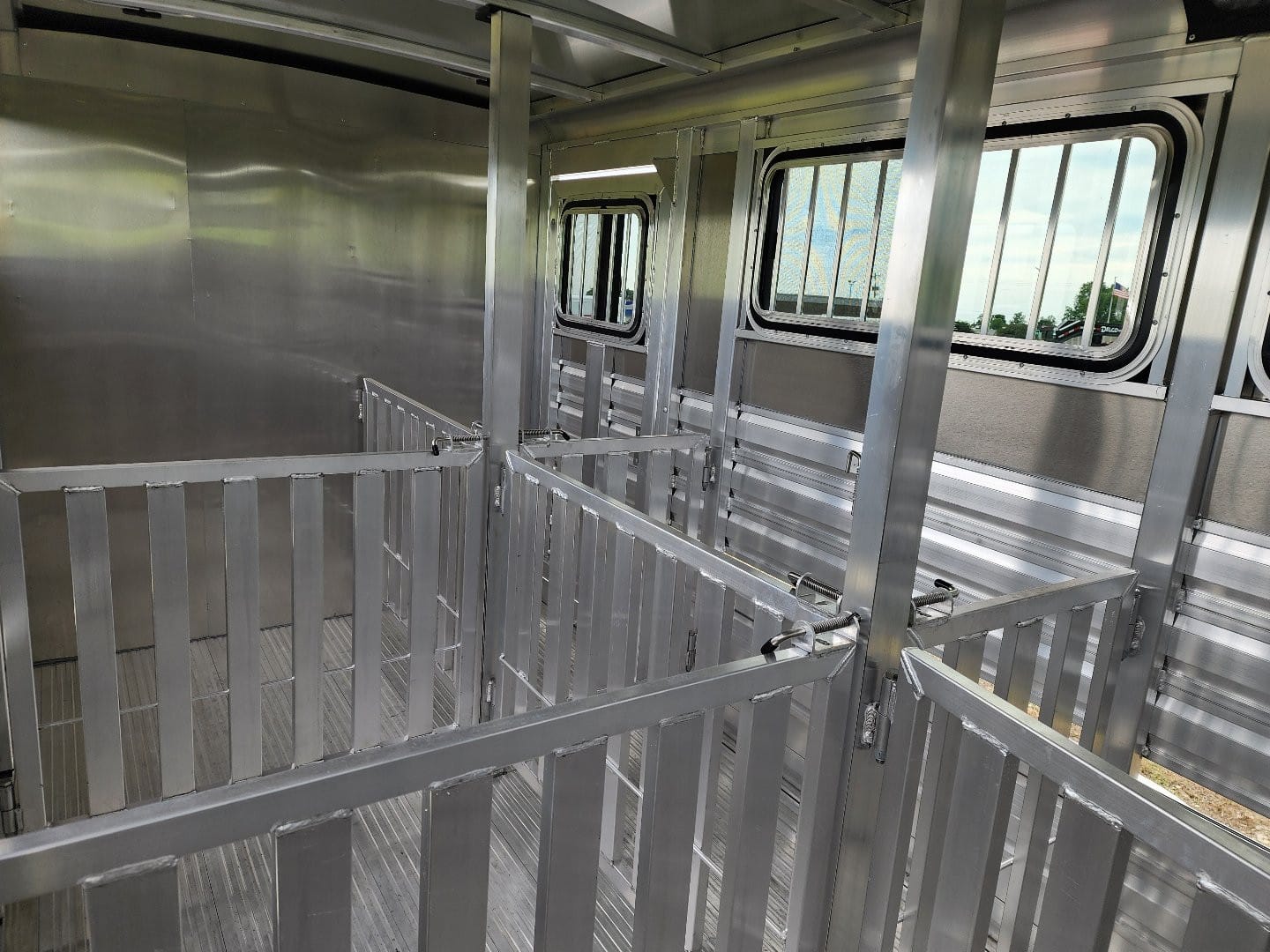

Pen Setup – Exhibitor Mini 60/40 Pen System (615 Combo Model)

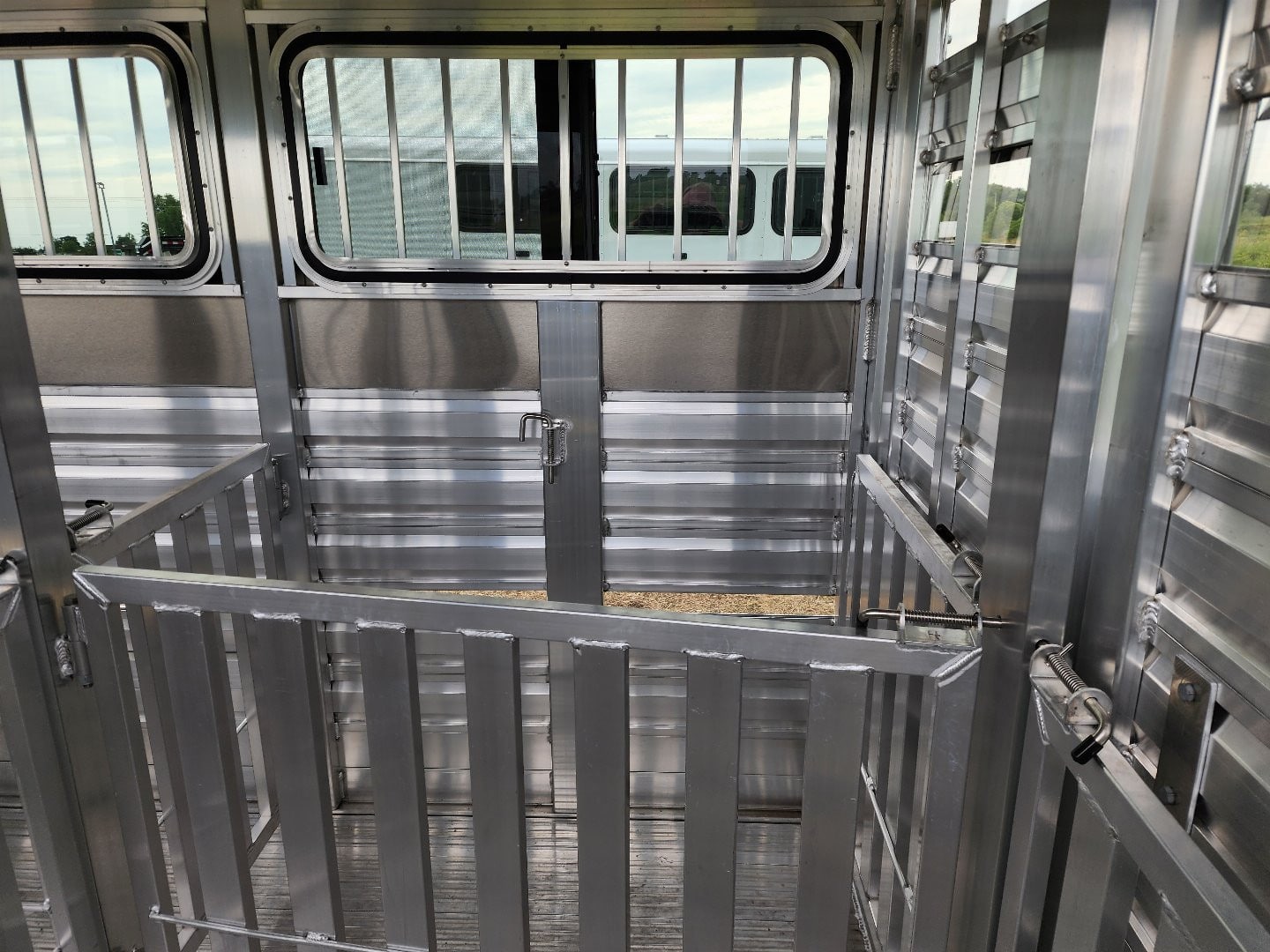

Center Gate
Rear Ramp – Exhibitor Mini – Full Width Wheels – Upgrade (5) Steel Wheels to Silver Altitude Aluminum Wheels
Vent – Roof Vent – 5×9 Pop Up 2 Way
